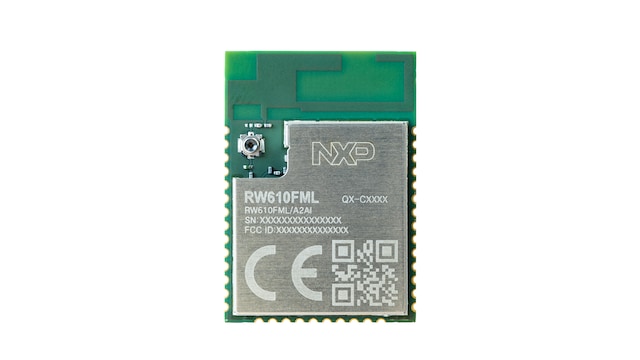

RW610FML: Wi-Fi 6 and Bluetooth® LE Combo Module
The RW610FML is presented as a low-power, high-performance Wi-Fi 6 and Bluetooth combo module. It supports a comprehensive range of wireless protocols, including IEEE 802.11a/b/g/n/ac/ax for Wi-Fi and Bluetooth® Low Energy (BLE). This module is built upon the RW610, a highly integrated, low-power wireless MCU that combines an MCU with both Wi-Fi 6 and Bluetooth Low Energy radios.
Designed for flexibility, the RW610FML integrates a rich set of peripheral interfaces. This enables versatile design implementations and broad application support, making it suitable for a wide array of connected products within the Internet of Things (IoT) and consumer device sectors.
At its core, the RW610 MCU subsystem features a powerful 260 MHz Arm® Cortex®-M33 processor, enhanced with Trustzone™-M for robust security. It is equipped with 1.2 MB of on-chip SRAM and a high-bandwidth Quad SPI interface. A key security differentiator is its on-the-fly decryption engine, which facilitates secure access to off-chip execute-in-place (XIP) flash memory.
Specifications
| Characteristic | Value |
|---|---|
| Product | RW610FML |
| Function | Wi-Fi 6 and Bluetooth Combo Module |
| Supported Protocols | IEEE 802.11a/b/g/n/ac/ax, Bluetooth Low Energy (BLE) |
| MCU Core | 260 MHz Arm Cortex-M33 with Trustzone-M |
| On-chip SRAM | 1.2 MB |
| Key Interface | High-bandwidth Quad SPI with on-the-fly decryption |
| Power Profile | Low-power |
| Performance Profile | High-performance |
Key Features
- Low-power operation
- High-performance capabilities
- Supports Wi-Fi 6 (IEEE 802.11a/b/g/n/ac/ax) protocols
- Supports Bluetooth Low Energy (BLE) protocols
- Integrated Wi-Fi 6 and Bluetooth LE radios
- Based on the RW610 highly integrated, low-power wireless MCU
- Incorporates a 260 MHz Arm Cortex-M33 core
- Features Trustzone-M for enhanced security
- Equipped with 1.2 MB on-chip SRAM
- Integrates a high-bandwidth Quad SPI interface
- Includes an on-the-fly decryption engine for secure off-chip XIP flash access
- Offers a rich set of peripheral interfaces for flexible design
Applications
- IoT devices
- Consumer devices
