TDK Presents Robust and Easy-to-Mount NTC Systems
TDK Corporation has expanded its NTC temperature sensor portfolio with the M704 and M705 series, engineered for reliable temperature measurement in high-voltage industrial environments. These new probe assemblies are designed to provide safe and precise monitoring in demanding applications, with the M704 offering voltage ratings up to 4000 V (AC) and the M705 up to 2500 V (AC).
These NTC systems are crucial for applications such as UPS and PSU systems in data centers, charging stations, and PV inverters, where safety, reliability, and installation efficiency are paramount. By combining electrical robustness with ease of assembly, TDK aims to help designers achieve safe and efficient system operation in these challenging high-voltage settings.

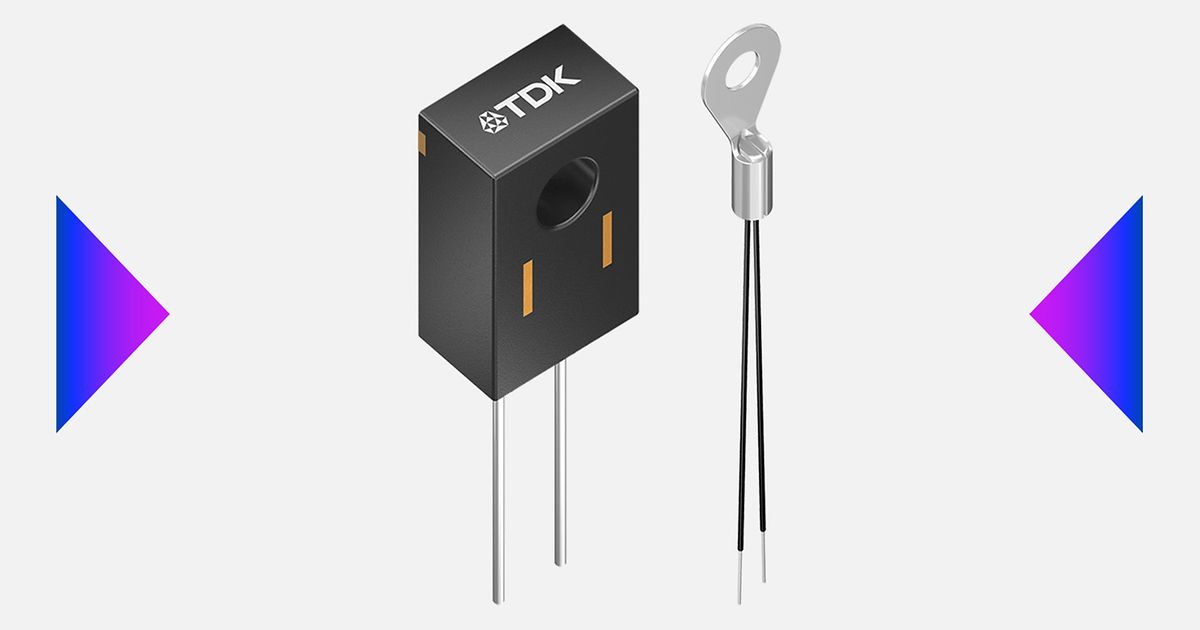

The M704 and M705 series differentiate themselves through their application-focused design. The M704 supports automated PCB integration with its compact plastic case, while the M705 features a metal-tag ring lug design for excellent thermal coupling and flexible screw-on mounting, ensuring robust and adaptable temperature sensing solutions.
Source Link: Press Release
Specifications
| Product Series | Max Voltage (AC) | R25 | B25/100 | Resistance Tolerance | M704 Temp Range | M705 Temp Range | M704 Key Assembly | M705 Key Assembly/Thermal |
|---|---|---|---|---|---|---|---|---|
| M704/M705 | M704: 4000V / M705: 2500V | 10 kΩ | 3988 K (±1%) | ±2% | -40 °C to +125 °C | up to +180 °C | Automated PCB, 3.5mm lead | Metal-tag ring lug, ~6.2s |
Key Features
- Designed for reliable temperature measurement in high-voltage environments.
- M704 series rated for applications up to 4000 V (AC).
- M705 series rated for applications up to 2500 V (AC).
- Easy to mount, enhancing installation efficiency.
- M704 supports automated PCB integration with a compact plastic case and 3.5 mm lead spacing.
- M705 features a metal-tag ring lug design for excellent thermal coupling and flexible screw-on mounting.
- M705 provides a low thermal time constant of approximately 6.2 s on a metal plate for fast thermal response.
- M705 offers an extended operating temperature range up to +180 °C.
- M704 operates within a temperature range from -40 °C to +125 °C.
- Both series feature an R25 of 10 kΩ.
- Both series have a B25/100 value of 3988 K (±1 per cent) and a resistance tolerance of ±2 per cent.
Applications
- UPS and PSU systems in data centers
- Charging stations
- Photovoltaic inverters
- Power electronics
Avaliablity
TDK Electronics’ M704 and M705 series NTC temperature sensor assemblies are featured in its product portfolio for demanding industrial applications, including data center UPS and power supply systems, EV charging stations and photovoltaic inverters. The M704 supports AC voltages up to 4000 V, while the M705 is rated for up to 2500 V AC and offers an operating temperature range up to +180°C. Both series are listed in TDK’s NTC sensor assembly product catalog, where customers can access product specifications, datasheets and ordering information.
