TDK PositionSense™ offers 'Smart Perception’ for wearables
TDK Corporation, through its group company InvenSense, has announced the worldwide distribution availability of PositionSense™, a two-chip, nine-axis sensor solution. This innovative product is designed to provide 'Smart Perception' capabilities, enabling next-generation positioning accuracy and navigation for a wide array of devices.
PositionSense addresses the critical need for precise location and orientation tracking in modern technology, particularly for Physical AI devices. It ensures that users and autonomous systems remain accurately oriented and on track, even in environments lacking satellite connectivity, such as dense urban areas, factories, or remote fields.

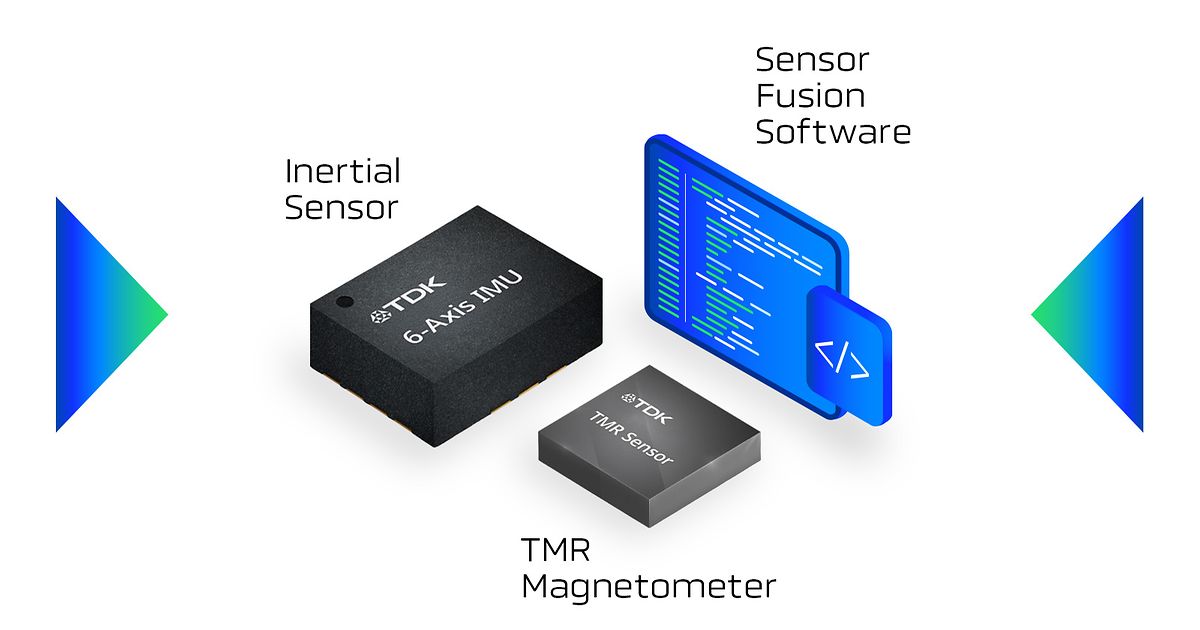

The solution's key differentiator lies in its custom integration of advanced components: TDK’s ultra-low-power 6-axis IMU (Inertial Measurement Unit) and a 3-axis TMR-based (Tunnel Magneto Resistance) magnetometer. These are combined with on-chip sensor fusion and calibration software, delivering fast, accurate orientation tracking and position detection. This integration allows for ultimate positioning accuracy in demanding applications.
Source Link: Press Release
Specifications
| Product | Type | Manufacturer | IMU Accel/Gyro Full-Scale Range | VDDIO | Interface | Key Technologies |
|---|---|---|---|---|---|---|
| PositionSense | 2-chip 9-axis sensor solution | TDK (InvenSense) | Up to ±32 g / ±4000 dps | 1.2V or 1.8V | I2C, SPI, I3C | MEMS, TMR, Sensor Fusion, BalancedGyro |
Key Features
- Two-chip, 9-axis sensor solution for absolute orientation detection and fast calibration.
- Integrates TDK’s ultra-low-power 6-axis IMU and 3-axis TMR-based magnetometer.
- Features on-chip sensor fusion software for fast and accurate 9-axis sensor calibration.
- Enables ultimate positioning accuracy and reliable navigation, even without satellite connection.
- IMU incorporates high-performance MEMS technology and an industry-first vibration-resistant gyroscope with BalancedGyro technology.
- TMR-based magnetometer offers high sensitivity, accuracy, lowest power consumption, and magnetic field shock resistance.
- Provides precise time synchronisation for immediate processing of sensor data at the exact moment of motion.
- Supports multiple interfaces (I2C, SPI, I3C) and VDDIO options (1.2V, 1.8V) depending on the configuration.
- Available in configurations with extended IMU ranges up to ±32 g accelerometer and ±4000 dps gyroscope for high-dynamic motion.
- Designed for easy integration, supporting always-on sensing capabilities.
Applications
- Wearables, including smart glasses, AR/VR devices, hearables, and TWS earbuds
- Smartphones and other mobile devices
- Humanoid robots and general robotics applications
- Drones
- Assistive technology, such as smart canes
- General IoT applications requiring precise location and navigation
Availability:
TDK Corporation’s InvenSense PositionSense™ nine-axis motion-sensing solution is now available for worldwide distribution in four hardware configurations, combining a six-axis inertial measurement unit (IMU), a three-axis tunnel magnetoresistance (TMR) magnetometer, and on-chip sensor-fusion and calibration software. The available configurations include the ICM-45608 + ICT-15318 for 1.8 V digital I/O applications, the ICM-45608 + ICT-15312 for 1.2 V power-sensitive designs, the ICM-45689 + ICT-15318 for high-dynamic motion sensing with extended accelerometer and gyroscope ranges, and the ICM-45689 + ICT-15312 for high-dynamic applications requiring 1.2 V digital I/O.
