AHT10 High Precision Digital Temperature and Humidity Measurement Module

The AHT10, is a precision digital temperature and humidity sensor renowned for its exceptional accuracy and reliability. With a temperature measurement range spanning from -40°C to 85°C and an accuracy level of ±0.3°C, coupled with a humidity measurement range of 0% to 100% and an accuracy of ±2%, the AHT10 excels in delivering crucial environmental data for a multitude of applications, including weather monitoring, HVAC systems, home automation, and IoT devices. Its compact design, low power consumption, and I2C interface make it effortlessly integratable into various projects, while its stability ensures long-term consistency in measurements, ideal for continuous monitoring and data logging. Whether for a weather station, smart home system, or industrial automation, the AHT10 sensor is a valuable component, providing precise environmental insights to elevate project efficiency and performance.

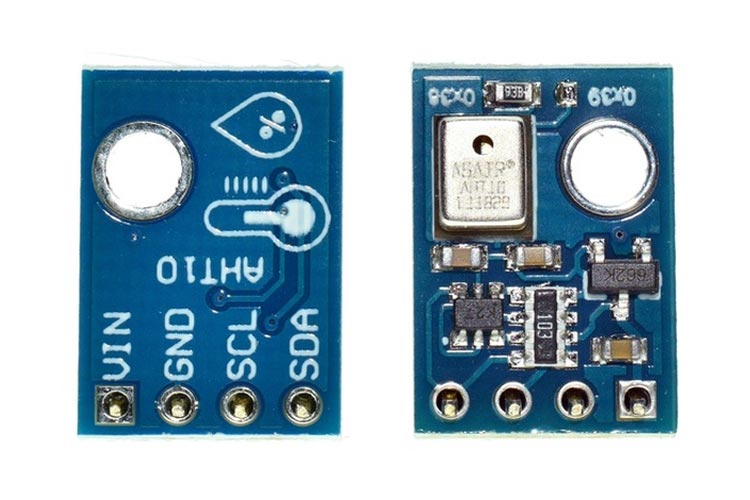

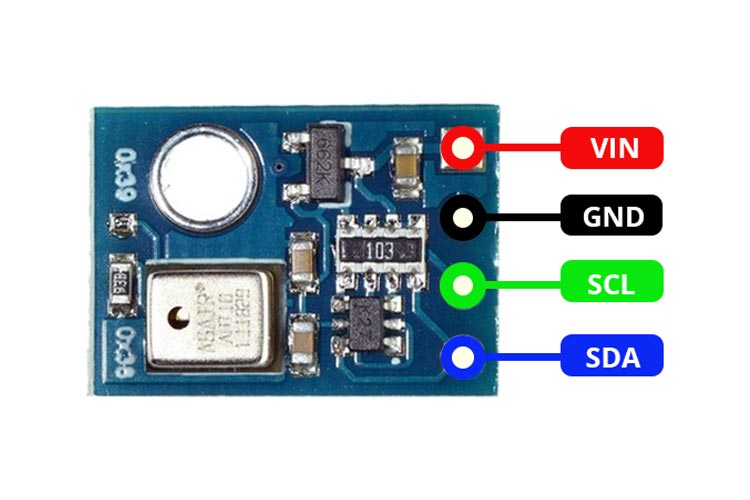

 AHT10 Pinout Configuration

Pin number

Signal name

Signal type

Signal description




Supply input.




Ground pin




I2 C serial clock




I2 C serial data



  • Interface type: I2C (0x38)
  • Operating voltage: 3.3V – 5V
  • Measuring range:
  • Temperature: -40°C to 85°C
  • Humidity: 0% to 100% ±2%RH
  • Temperature accuracy: ±0.3°C
  • Temperature resolution: 0.01 °C
  • Humidity resolution: 0.024%
  • Humidity accuracy: 2%
  • Fully calibrated
  • Excellent long-term stability
  • Fast response and strong anti-interference ability


Alternatives for AHT10



Other Temperature and Humidity Sensors

DHT11, DHT22, AM2302, SHT71

Note: Complete technical details can be found in the AHT10 datasheet at this page’s end.


AHT10 Sensor Module Schematics

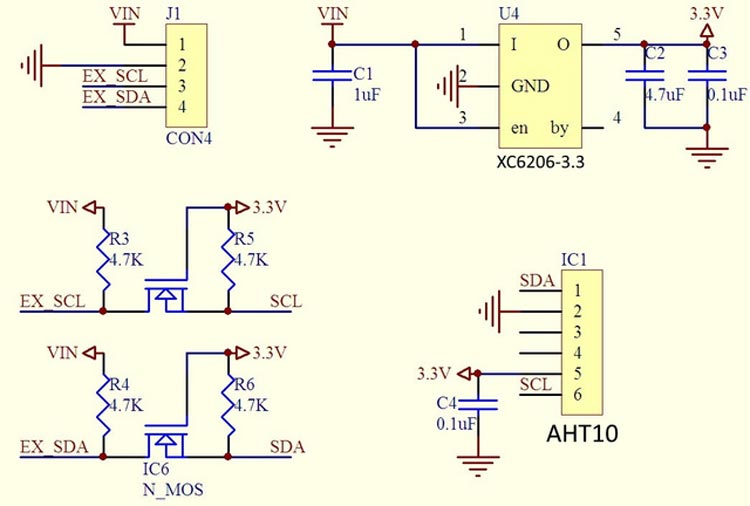

The following image shows schematic diagram of the AHT10 module.

AHT10 sensor module schematics

An XC620-3.3V regulator is used to generate the 3.3V for the AHT sensor from the input power supply. It is also accompanied by necessary filter capacitors to smooth the output. The module also includes a level shifter for the I2C line, which is built around a dual N channel MOSFET.


How to connect AHT10 Module with Arduino UNO?

You just have to connect the I2C pins (SDA and SCL) of the AHT10 module to the reserved I2C pins of the Arduino UNO (A4 “SDA and A5 “SCL”) and power it with the 5V from the Arduino and finally connect the GND terminal to GND. The following image shows how to make the connections:

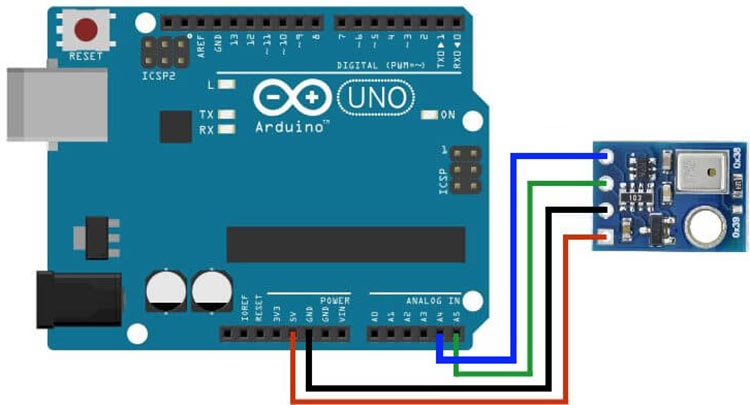

Circuit Diagram of AHT10 module with Arduino UNO


How to Program AHT10 module with Arduino IDE?

Programming is very simple, to display the sensor readings on the Arduino IDE serial monitor, you just have to import the  AHT10 library and load the following test code to measure temperature and humidity:

#include < Wire .h> // Library to establish I2C communication
#include < AHT10 .h> // Library to use the AHT10 sensor
AHT10 myAHT10(0x38);//AHT10 instance, address 0x38
void  setup () {
 Wire . begin (); // Function that initializes the Wire library.
Serial library . begin (9600); // initializes Serial communication.
Serial . println ( "Initialising AHT10 Sensor" );
if (!myAHT10. begin ()) { // If communication with the sensor fails, an error message is printed
Serial . println ( "Sensor error!" );
while (1);
void  loop () {
 float temp = myAHT10. readTemperature (); //read temperature from sensor and store it in a variable.
 float hum = myAHT10. readHumidity (); // read humidity from sensor and store it in a variable.
 Serial . print ( "Temp: " ); Serial . print (temp); Serial . print ( "°C  " ); //print the temperature value.
 ​​Serial. print ( "Humidity: " ); Serial . print (hum); Serial . println ( " %" ); // print the humidity value.
 delay (1000);



  • HVAC
  • Dehumidifiers
  • Testing and testing equipment
  • Consumer goods
  • Automobiles
  • Automatic control
  • Data logger
  • Weather home appliances
  • Humidity regulation
  • Medical and other related temperature and humidity detection and control.


2D-Model and Dimensions

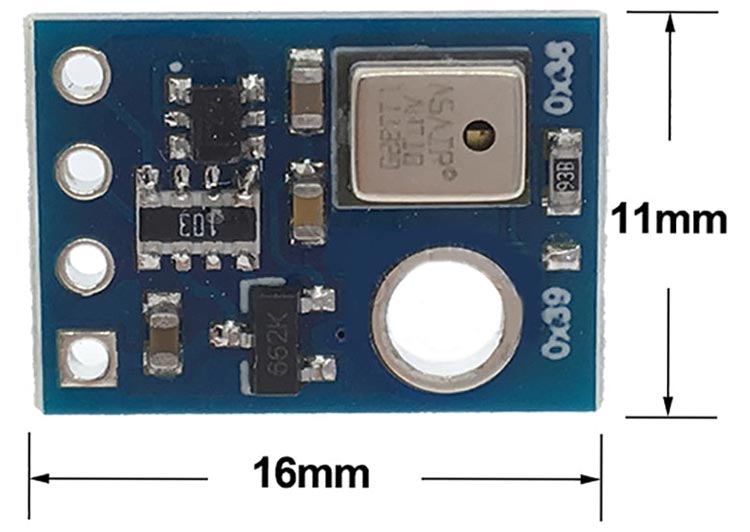

Below is the 2D CAD drawing of AHT10 module along with its dimensions in millimeters. The dimensions can be used to create custom footprints of the module and be used for PCB or CAD modeling.

AHT10 module dimensions
