Vishay Intertechnology introduced a new series of AC line rated ceramic disc safety capacitors

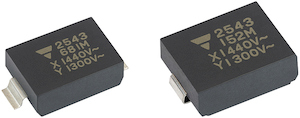

Vishay Intertechnology, Inc. has introduced the new Vishay BCcomponents SMDY1…S series, a line of AC line rated ceramic disc safety capacitors. These components are specifically designed for effective EMI / RFI suppression and filtering in diverse industrial environments. A key differentiator of this series is its surface-mount casing, which significantly reduces board space requirements by up to 40% compared to previous-generation devices, thereby enabling greater product miniaturization across various applications.
The SMDY1…S series features a robust Y1 rating of 300 VAC and 1500 VDC. This rating allows the capacitors to bridge double or reinforced insulation, and they are also suitable for use in DC networks up to 1500 VDC, in accordance with IEC standard Annex H. Beyond their compact design and high voltage capabilities, these capacitors offer enhanced performance with superior insulation resistance and a wider operating temperature range than industry standards, ensuring high reliability in demanding conditions.
The surface-mount design of the SMDY1…S series streamlines manufacturing processes by supporting pick and place assembly with reflow soldering. This eliminates the need for manual soldering steps typically associated with through-hole components, simplifying production and contributing to reduced manufacturing costs. The series is also built with a focus on safety and environmental compliance, being RoHS-compliant, halogen-free, and featuring flame-resistant epoxy resin encapsulation.
Specifications
| Product Series | Function | Y1 Rating (AC/DC) | Insulation Resistance | Operating Temperature Range | Mounting Type | Capacitance Range |
|---|---|---|---|---|---|---|
| SMDY1…S | EMI / RFI Suppression & Filtering | 300 VAC / 1500 VDC | ≥ 10,000 MΩ | -55 °C to +125 °C | Surface-mount | 10 pF to 1500 pF |
Key Features
- Y1 rating of 300 VAC and 1500 VDC for robust performance.
- Surface-mount casing enables up to 40% board space reduction.
- Facilitates product miniaturization in various electronic designs.
- Enhanced insulation resistance of ≥ 10,000 MΩ, exceeding industry standards.
- Wide operating temperature range from -55 °C to +125 °C.
- 100% production tested with a comprehensive five-point verification protocol.
- Complies with IEC 60384-14 and certified by UL, CSA, VDE, ENEC, and CQC.
- Supports use in DC networks up to 1500 VDC in accordance with IEC standard Annex H.
- Surface-mount design supports pick-and-place assembly with reflow soldering, reducing production costs.
- RoHS-compliant and halogen-free for environmental safety.
- Features encapsulation made of flame-resistant epoxy resin (UL 94 V-0).
- Available in A (10 pF to 680 pF) and B (1000 pF to 1500 pF) case sizes.
Applications
- Industrial motor drives
- Welding equipment
- Inverters and UPS systems
- Rail power supplies
- HVAC systems
- LED drivers
- Smart home automation systems
- Computer switch-mode power supplies and AC/DC converters
- Consumer appliances, including washing machines and refrigerators
- Automotive charging stations
Availability
The SMDY1...S is available through Vishay’s product page, which provides datasheets, samples, ECAD models, and a “Buy Now” option. The series offers 10 pF to 1.5 nF capacitance and is surface-mount, reflow-soldered.
