TDK Launches Low-Resistance 10 μF/100 V Soft-Termination X7R MLCCs

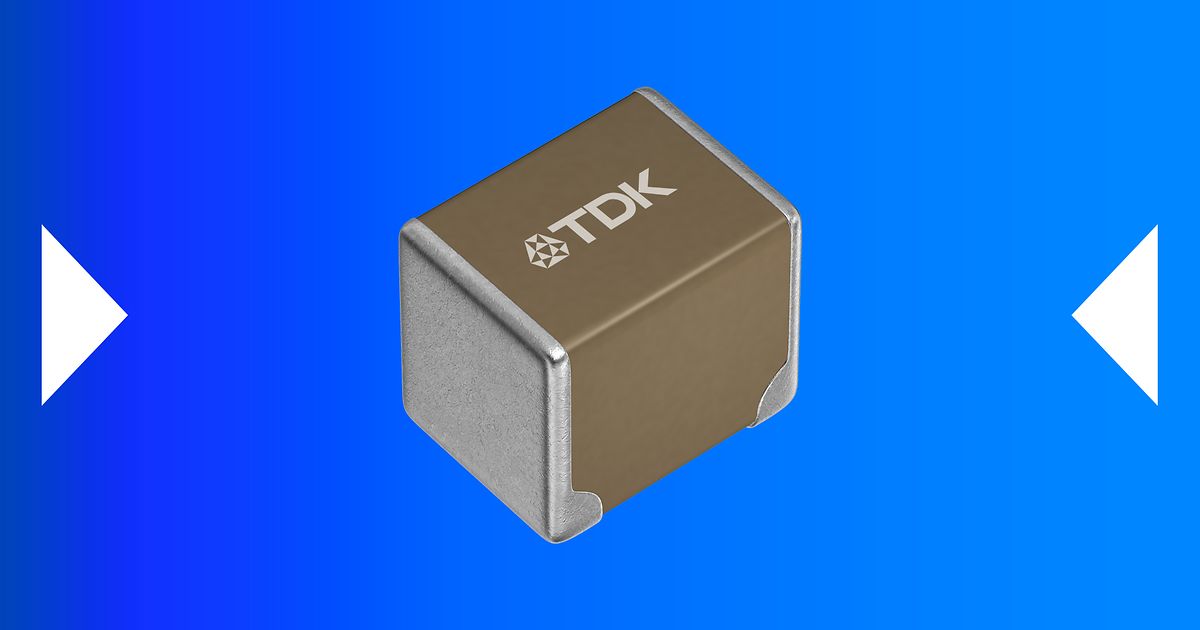

TDK Corporation has expanded its CN series of low-resistance soft-termination SMD Multilayer Ceramic Capacitors (MLCCs) with a new 100 V component featuring X7R characteristics. This product achieves an industry-leading rated capacitance of 10 μF in the compact 3225 format (3.2 x 2.5 x 2.5 mm), as of September 2026. Mass production of these new components began in September 2026.
This expansion addresses the growing demand for 100 V-rated MLCCs with larger capacitance in 48 V applications, particularly within the AI ecosystem, including AI servers, humanoid robots, and xEVs These applications aim to reduce power loss and the weight of wire harnesses, necessitating high-capacitance components. The new CN series also tackles a common issue in soft-termination products: increased Equivalent Series Resistance (ESR) due to the resin layer.
TDK's key differentiator lies in its optimised resin electrode structure. This proprietary design allows the CN series to maintain low resistance, equivalent to that of standard terminal products, despite incorporating soft termination for enhanced reliability against external stress. Through optimised material selection and product design, these components achieve twice the capacitance of TDK’s conventional capacitors of the same size while significantly reducing ESR. This innovation contributes to higher reliability, a reduction in component count, and miniaturization of electronic sets.
Specifications
| Product Type | Function | Outer Dimensions (L x W x T) | Temperature Characteristics | Capacitance Tolerance | Safety Rating | Key Differentiators |
|---|---|---|---|---|---|---|
| CNA/CNC Series (CNA6P1X7R2A106K250AE, CNC6P1X7R2A106K250AE) | Low-resistance soft-termination X7R MLCC | 3.2 x 2.5 x 2.5 mm | X7R | ±10% | AEC-Q200 (for automotive CNA series) | Industry-leading 10 μF/100V in 3225 format (as of Sep 2026); low resistance equivalent to standard terminal products despite soft termination; twice the capacitance of TDK's conventional capacitors of the same size; significantly reduced ESR. |
Key Features
- New 100 V SMD component with X7R characteristics.
- Achieves an industry-leading rated capacitance of 10 μF in the 3225 format (as of September 2026).
- TDK's unique terminal structure realizes soft termination MLCC with low resistance equal to that of standard terminal products.
- Optimized resin electrode structure and material selection.
- Achieves twice the capacitance of TDK’s conventional capacitors of the same size.
- Significantly reduces Equivalent Series Resistance (ESR).
- Offers high reliability, reduced component count, and miniaturisation.
- High-reliability qualified to AEC-Q200 for automotive applications (CNA series).
- Makes it possible to halve the number of MLCCs used and the mounting area.
- Effective in enhancing reliability in 48-V power lines.
Applications
- Smoothing and decoupling of power lines for various 48-V applications.
- AI servers.
- Humanoid robots.
- xEVs (electric vehicles).
- Various industrial equipment.
Avalibility
The new TDK X7R MLCCs are now in production and available through authorised distributors. The commercial-grade CNC6P1X7R2A106K250AE, offering 10 μF capacitance, 100 VDC rated voltage, X7R characteristics, low resistance, and soft termination in the 3225 (EIA 1210) package, is available through TDK’s product centre and distributor network. TDK also offers the CNA6P1X7R2A106K250AE, an AEC-Q200-qualified variant with the same 10 μF, 100 V, X7R specifications.
