Next-Gen CoolSiC G2 MOSFETs from Infineon Enhance Power Density for Industrial Applications

Infineon just introduced a new generation of CoolSiC™ MOSFETs rated for 1200 V, now available in a Q-DPAK package that allows cooling by letting heat escape from the top. These devices are tweaked to suit the demands of industrial applications like EV chargers, solar inverters, UPS systems, motor drives, and solid-state circuit breakers.

When compared to older versions, these new MOSFETs reduce switching losses by 25%. They make use of Infineon’s enhanced .XT™ interconnect tech to cut down thermal resistance by over 15%, effectively enabling improved system efficiency and power density. The MOSFETs feature RDS(on) values between 4 mΩ and 78 mΩ, making things flexible for a wide range of system designs. Further, they support high junction temperatures (up to 200°C) and offer a strong resistance to parasitic turn-on, improving reliability under high-stress conditions.

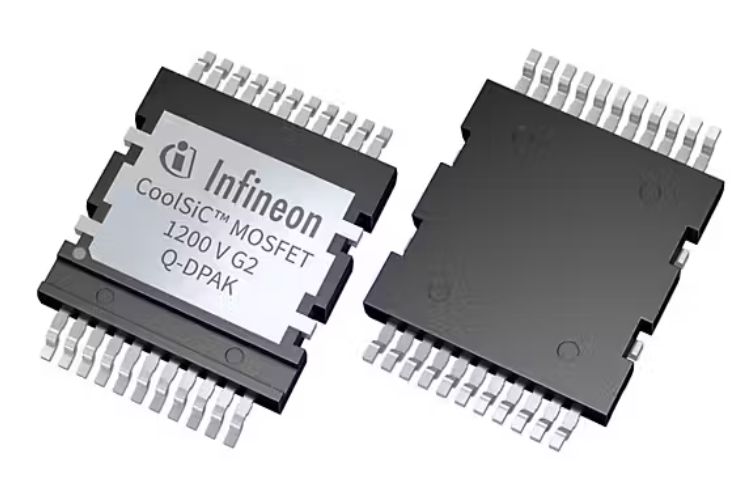

Package types in the TSC platform share a standard height of 2.3 mm, including TOLT and Q-DPAK, simplifying thermal design under a shared heatsink. The package is compatible with automated manufacturing processes, making production simple and keeping costs to a minimum. The IMCQ120R026M2H CoolSiC MOSFET is now available in both Q-DPAK single-switch and dual half-bridge variants.

Key Features of 1200 V G2 CoolSiC MOSFETs

• 1200 V rating handles high-voltage applications

• Q-DPAK lets heat escape from the top

• 25% less switching losses than old ones

• Boosts system efficiency by 0.1%

• New .XT tech cuts thermal resistance 15%

• Runs 11% cooler than G1 versions

• RDS(on) from 4 mΩ to 78 mΩ - lots of options

• Works up to 200°C junction temp

• Won't randomly turn on when it shouldn't

• Low parasitic inductance for fast switching

• Small package saves board space

• Fits with X-DPAK platform architecture

• Standard 2.3 mm height matches other TSC packages

• Works with automated assembly equipment

Applications of 1200 V CoolSiC G2 MOSFETs

• EV charging stations

• Solar power inverters

• UPS backup systems

• Motor drives for industry

• Solid-state breakers

• Power converters in harsh spots

• Tight space high-power designs

• Custom power system builds
