AAEON Release Micro-ATX Duo with Intel Core Ultra Desktop Processors

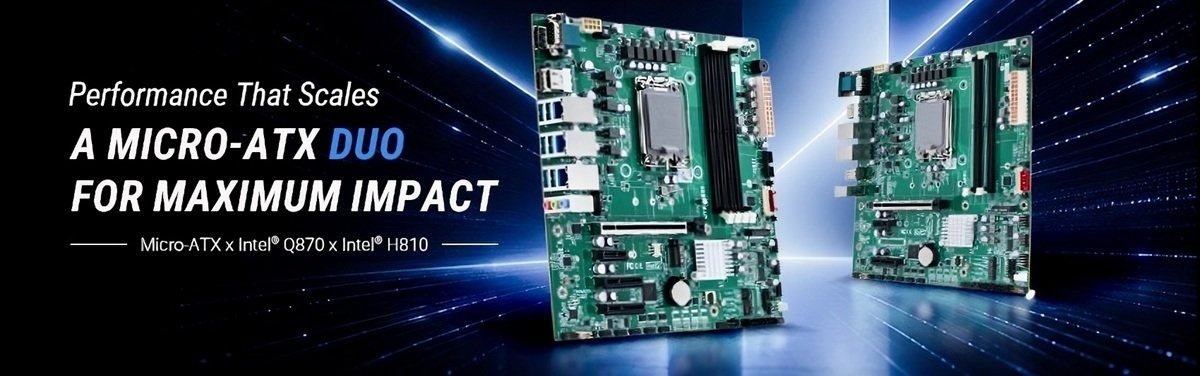

AAEON has announced the release of two new Micro-ATX industrial motherboards, the MAX-Q870A and MAX-H810A. These boards feature Intel® Core™ Ultra 200S Series Processors, previously known as Arrow Lake-S, marking a significant update for industrial computing solutions. The announcement, made on September 9, 2026, in Taipei, Taiwan, highlights AAEON's commitment to integrating advanced processing capabilities into robust form factors.
The MAX-Q870A is specifically designed for advanced AI and machine vision applications, supporting Arrow Lake-S CPUs with power requirements up to 125W SKUs. It offers extensive memory and storage capabilities, including four CU/U-DIMM slots for up to 256GB of DDR5 memory, dual M.2 M-Key slots with NVMe support, and two SATA 6Gb/s ports with RAID 0, 1, and 5 support. Its robust expansion architecture accommodates four PCIe devices simultaneously, utilizing one PCIe Gen 5 x16, two PCIe Gen 4 x4, and one PCIe Gen 4 x1 slot.
In contrast, the MAX-H810A targets modern industrial automation and Human-Machine Interface (HMI) applications, providing a cost-efficient solution. This board supports Arrow Lake-S CPUs up to 65W SKUs and offers up to 128GB of DDR5 memory across two CU/U-DIMM slots. Storage is managed by dual SATA 6Gb/s ports with RAID 0 and 1 support, alongside an M.2 M-Key slot. Expansion options include PCIe Gen 5 x16, PCIe Gen 4 x4, and PCIe Gen 4 x1 slots, complemented by an M.2 E-Key for wireless module support.
Both the MAX-Q870A and MAX-H810A platforms are engineered to operate across a wide temperature range of -20°C to 60°C and support both Windows® 11 and Linux Ubuntu 24.04.2. AAEON confirms that both models are currently in mass production, with samples readily available through their eShop.
Specifications
| Product | Form Factor | Supported Processor Power | Maximum DDR5 Memory | Operating Temperature | Supported Operating Systems |
|---|---|---|---|---|---|
| MAX-Q870A / MAX-H810A | Micro-ATX | Up to 125W / Up to 65W | Up to 256GB / Up to 128GB | -20°C to 60°C | Windows® 11; Linux Ubuntu 24.04.2 |
Key Features
- The MAX-Q870A and MAX-H810A are Micro-ATX industrial motherboards featuring Intel® Core™ Ultra 200S Series Processors.
- The MAX-Q870A supports Arrow Lake-S CPUs with up to 125W SKUs.
- The MAX-H810A supports Arrow Lake-S CPUs with up to 65W SKUs.
- The MAX-Q870A provides four CU/U-DIMM slots for up to 256GB DDR5 memory.
- The MAX-Q870A includes two M.2 M-Key slots with NVMe support and two SATA 6Gb/s ports with RAID 0, 1, and 5 support.
- The MAX-Q870A provides one PCIe Gen 5 x16, two PCIe Gen 4 x4, and one PCIe Gen 4 x1 slot, supporting four PCIe devices simultaneously.
- The MAX-Q870A includes an M.2 E-Key slot with CNVi support and an M.2 B-Key slot for Wi-Fi and 5G module support.
- The MAX-H810A provides two CU/U-DIMM slots supporting up to 128GB DDR5 memory, dual SATA 6Gb/s ports with RAID 0 and 1 support, and an M.2 M-Key slot.
- The MAX-H810A provides PCIe Gen 5 x16, PCIe Gen 4 x4, and PCIe Gen 4 x1 slots, plus an M.2 E-Key for wireless module support.
- Both boards support Windows® 11 and Linux Ubuntu 24.04.2.
- Both platforms have an operating temperature range of -20°C to 60°C.
- Both platforms are in mass production, with samples available through the AAEON eShop.
Applications
- Advanced AI applications.
- Machine vision applications.
- Industrial automation.
- Human-machine interface (HMI) applications.
Availability
The AAEON MAX-Q870A and MAX-H810A Mini-ITX industrial motherboards are introduced for Arrow Lake-based embedded computing applications. For product details, specifications, and downloadable documentation, visit the official MAX-Q870A product page and MAX-H810A product page .
