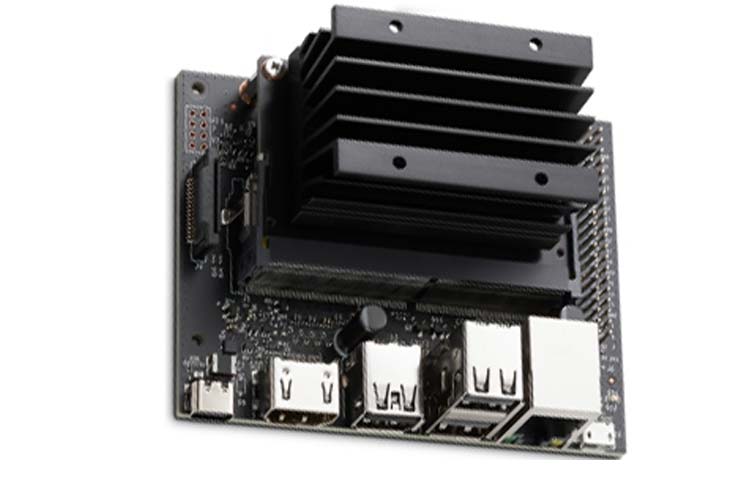

NVIDIA Jetson Nano Developer Kit

The Jetson Nano Developer Kit is ideal for deep learning and AI applications, and it comes with a 40-pin GPIO header, that can be used for microcontroller level tasks similar to that of a Raspberry Pi board.

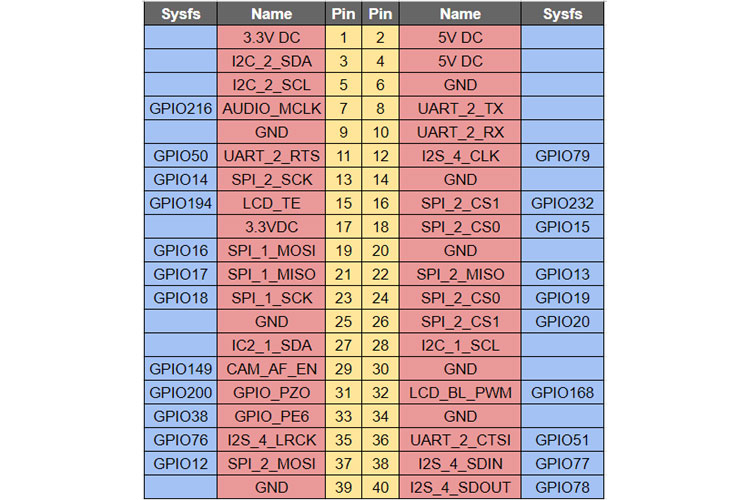

Jeston Nano Pinout

Pin  Number

Pin Name

Pin Description

1

3.3V DC

+3.3V Power Output

2

5V DC

+5V  Power Output

3

I2C_2_SDA

 I2C SDA Pin of the Board

4

5V DC

+5V -power output

5

I2C_2_SCL

I2C SCL Pin of the Board

6

GND

Ground Pin

7

AUDIO_MCLK

Audio Enable Pin

8

UART_2_TX

TX pin of UART2

9

GND

Ground Pin

10

UART_2_RX

RX pin of UART2

11

UART_2_RTS

RTS Pin of UART2

12

I2S_4_CLK

Clock Pin I2S

13

SPI_2_SCK

SPI Pin SCK

14

GND

Ground Pin

15

LCD_TE

LCD enable Pin

16

SPI_2_CS1

SPI2 Chip Select Pin

17

3.3VDC

+3.3V Power Output

18

SPI_2_CS0

SPI_2_CS0

19

SPI_1_MOSI

SPI_1_MOSI

20

GND

Ground Pin

21

SPI_1_MISO

Master In Slave Out of SPI2

22

SPI_2_MISO

Master In Slave Out of SPI1

23

SPI_1_SCK

SCK Pin of SPI 1

24

SPI_2_CS0

CS0 Pin of SPI2

25

GND

Ground Pin

26

SPI_2_CS1

CS1 of SPI2

27

I22_1_SDA

SDA of I2C1

28

I2C_1_SCL

SCL of I2C1

29

CAM_AF_EN

Auto Focus Enable

30

GND

Ground Pin

31

GPIO_PZO

Standard GPIO

32

LCD_BL_PWM

LCD Backlight Driver With PWM

33

GPIO_PE6

GPIO Pin

34

GND

Ground Pin

35

I2S_4_LRCK

I2S LRCk Pin

36

UART_2_CTSI

UART2 CTSI Pin

37

SPI_2_MOSI

SPI2 MOSI Pin

38

I2S_4_SDIN

I2S SDIN Pin

39

GND

Ground Pin

40

I2S_4_SDOUT

I2S SDOUT Pin



Features and Specifications

  • GPU: 128-core NVIDIA Maxwell™ architecture-based GPU
  • CPU: Quad-core ARM® A57
  • Video: 4K @ 30 fps (H.264/H.265) / 4K @ 60 fps (H.264/H.265) encode and decode
  • Camera: MIPI CSI-2 DPHY lanes, 12x (Module) and 1x (Developer Kit)
  • Memory: 4 GB 64-bit LPDDR4; 25.6 gigabytes/second
  • Connectivity: Gigabit Ethernet, USB, HDMI
  • OS Support: Linux for Tegra®
  • Module Size: 70mm x 45mm
  • Developer Kit Size: 100mm x 80mm



Note: Complete technical details can be found in the Jetson Nano datasheet, given at the end of the page.



What is Jeston Nano and Where it can be Used?

Jetson Nano is a small, powerful computer for embedded applications and AI IoT that delivers the power of modern AI in a $99 module. The Jetson Nano board is made to empower deep learning and AI applications and also comes with a 40-pin GPIO header that can be used to perform microcontroller level tasks similar to the Raspberry Pi boards.

The Jetson Nano Development Board has huge potential, it is an AI computer that makes it possible to create millions of intelligent systems, as it is so powerful it can be used to perform neural networks, image processing, and many more tasks. Both wireless and wired connectivity is available on this board so it can also be used for IoT (Internet of Things) related projects, it has also a high-speed Ethernet port for high-speed network connectivity and processing. This board also has a dedicated camera and display connector so it can be used remotely without the need for an external monitor. It also comes with a PWM and GPIO for data-driven applications.



How to Use Jetson Nano?

The Jetson Nano is a small system on a board, so it needs to have an operating system to work properly, so the operating system needs to be installed to this feature is similar to our PC. The Jeston Nano has a dedicated OS called NVIDIA Jetpack; any other OS will not work.  NVIDIA JetPack SDK is the most comprehensive solution for building AI applications. Flash your Jetson developer kit with the latest OS image, install developer tools for both host computer and developer kit, and install the libraries and APIs, samples, and documentation needed to jumpstart your development environment. For that, you need to go to the NVIDIA website and download jetpack SDK for your specific and follow the instructions accordingly. Then you can install different docker containers and install applications as your likings.



Applications

  • Hobby projects.
  • Low cost PC/tablet/laptop
  • IoT applications
  • Media center
  • Robotics
  • Industrial/Home automation
  • Server/cloud server
  • Print server
  • Security monitoring
  • Web camera
  • Gaming
  • Wireless access point
  • Environmental sensing/monitoring (e.g. WEATHER STATION)
  • Machining Learning and AI applications.

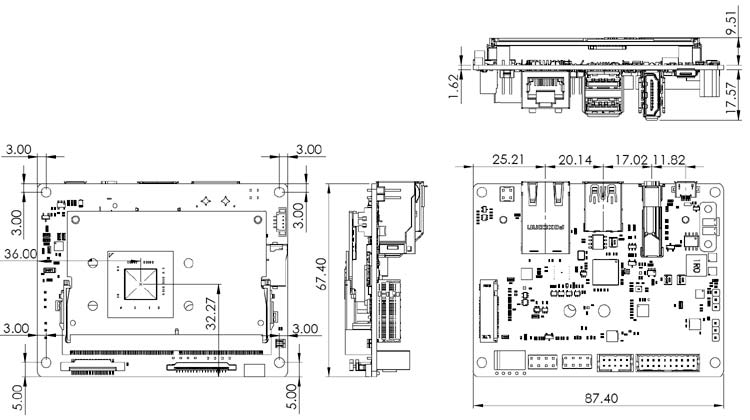

2D Model and Dimensions

If you are designing a PCB or Perf board with this component then the following picture from the Datasheet will be useful to know its package type and dimensions.

Jetson Nano Board Dimensions

Component Datasheet
