A Real-Time Clock (RTC) is a special type of integrated circuit (IC) that keeps track of the current time. Think of it as a tiny, trustworthy clock inside your computer, smartphone, or other gadget that always knows what time it is. RTCs are designed to use minimal power, so they can operate on a small coin cell battery for years. In this article, we’ll learn how RTCs works and why they’re so important in today’s electronic devices.

Some Real World Examples

While the theory behind RTC (Real-Time Clock) is essential, practical examples help in understanding how it works in real applications. Let's explore some real-world uses of RTC:

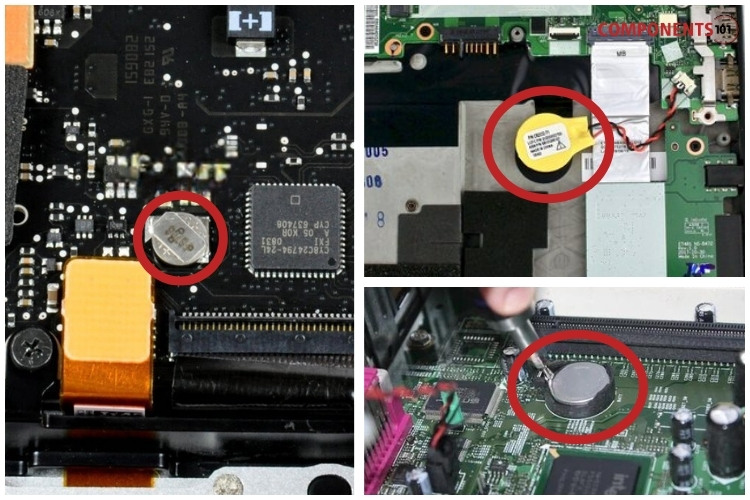

1. Personal Computer

Your computer, whether it’s a laptop or desktop, it has a built-in RTC that maintains the time even when the system is turned off. If you’ve ever noticed that your computer still shows the correct time after being shut down for days, it’s thanks to the RTC. Typically, a coin cell battery powers the RTC when the system is off. The RTC switches between the power from the motherboard when the computer is on and the battery when it’s off, ensuring accurate timekeeping.

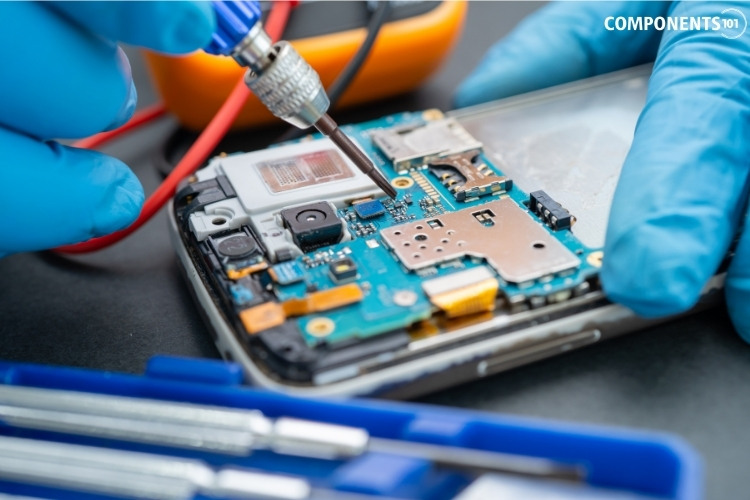

2. Smart Phones

Smartphones also use RTCs, but since they’re always powered by their internal battery, there’s no need for a separate coin cell. The RTC continues to run as long as the battery is intact, keeping the time even if the phone is turned off. The RTC only stops if the battery is completely removed or drained, ensuring that alarms, reminders, and notifications stay accurate.

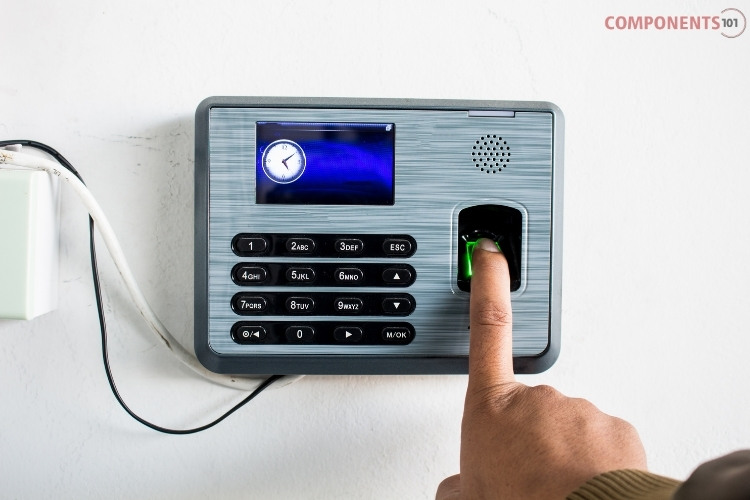

3. Attendance System

Automated attendance systems in workplaces often use RTCs to record employee check-in and check-out times. These systems, which might use face recognition or fingerprint scanners, rely on the RTC to ensure that each entry is logged with the correct date and time, providing a reliable record of attendance.

Syncing RTC with Standard Time

You might wonder how an RTC stays in sync with the correct time. It’s simple! If the device is connected to the internet, it uses the Network Time Protocol (NTP) to synchronize with a standard time server.

 For devices without internet access, there are two options:

• Manual Syncing: The date and time are set manually.

• IoT Devices: If the device connects to another internet-connected device, it can sync during data transfer.

These methods help ensure that RTCs remain accurate and up-to-date.

Varieties in RTC

Real-time clocks come in various types, each suited to different applications.

Basic RTCs:

These are the most common and provide essential timekeeping functions like seconds, minutes, hours, days, and years. They use an external crystal for timekeeping and need a small coin-cell battery to operate when the device is off. Basic RTCs are ideal for applications where extreme precision isn’t necessary.

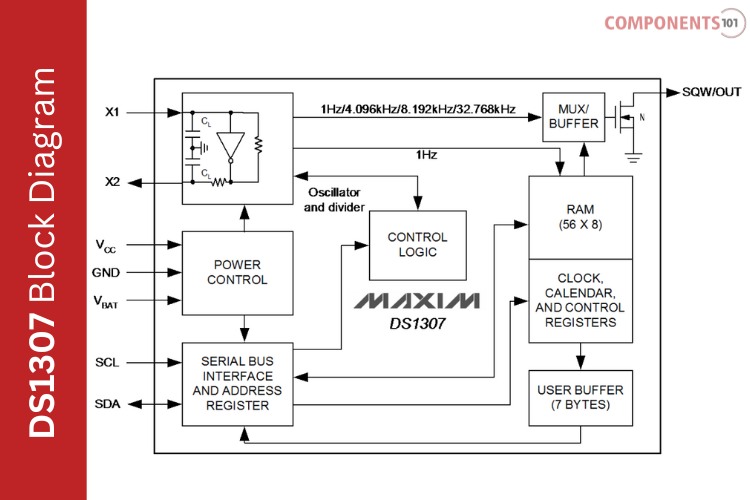

Example: DS1307 - A popular RTC that uses I2C communication, great for basic projects involving microcontrollers.

High-Accuracy RTCs:

These RTCs feature a Temperature-Compensated Crystal Oscillator (TCXO), which ensures precise timekeeping even with temperature changes. They’re perfect for applications where timing accuracy over long periods is crucial.

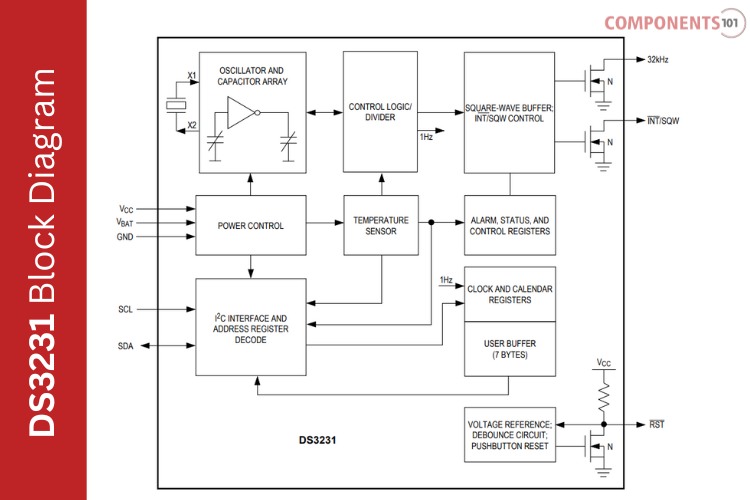

Example: DS3231 - Known for its high accuracy, this RTC is used in industrial settings and data loggers where minimizing time drift is important.

Integrated RTCs with Additional Features:

Some RTCs come with extra functionalities like alarms, countdown timers, or non-volatile memory (EEPROM). These features make them suitable for applications requiring more than just basic timekeeping, such as triggering events or storing small data logs. Additionally, they may offer options for selecting time formats (24-hour or 12-hour), date formats, and various interface protocols (1-Wire, 2-Wire (I2C), SPI). Other advanced features can include Daylight Saving adjustments, Leap Year handling, Square Wave outputs, WatchDog Timers, and Programmable Clock Outputs.

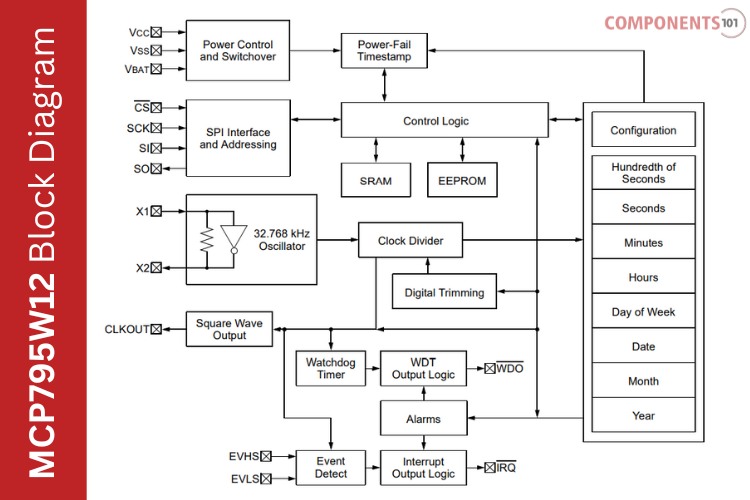

Example:  MCP795W12 - a low-power RTC module with built-in EEPROM and SRAM, featuring battery backup for reliable timekeeping and data storage in various embedded applications.

Low-Power RTCs:

Designed for battery-operated devices, these RTCs are optimized for minimal power consumption, thus extending battery life and making them ideal for applications that need to run for extended periods without maintenance.

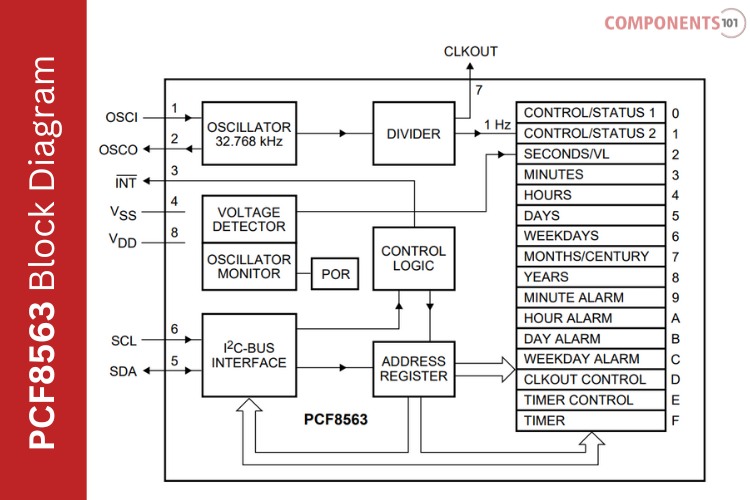

Example: PCF8563 - Known for its low power consumption, this RTC is widely used in portable devices like wearables and IoT systems.

Each variety of RTC offers different features and capabilities, helping you choose the right one for your specific needs.
