Vishay Intertechnology Standard Rectifiers Deliver High Current Ratings to 12 A in New Power DFN Series
Vishay Intertechnology has introduced a new series of surface-mount standard rectifiers, marking an industry first for devices in the low-profile DFN6546A package with wettable flanks. These rectifiers, including the 5 A SE50N6x, 8 A SE80N6x, 10 A SE100N6x, and 12 A SE120N6x series, are designed to provide space-saving solutions for critical power management functions.

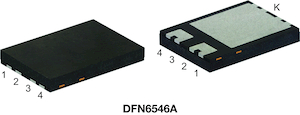

Manufactured by Vishay General Semiconductor, these rectifiers are available with reverse voltages of 200 V, 400 V, and 600 V, with AEC-Q101-qualified versions offered for demanding environments. The innovative DFN6546A package, part of Vishay’s new Power DFN family, features a compact 6.5 mm by 4.6 mm footprint and an extremely low typical height of 0.88 mm, optimizing PCB space utilization.
The advanced construction of these devices, featuring higher copper content and larger chip sizes, results in improved thermal performance, significantly higher current ratings, and enhanced forward surge current capability. Compared to solutions in the SMPC (TO-277A) package with the same footprint, Vishay’s new rectifiers offer a 10% lower profile, 20% higher current ratings, and an impressive 82% higher forward surge capability, making them a robust choice for various applications.
Source link: Press Release
Specifications
| Product Series | Current Rating | Reverse Voltage | Forward Surge Current | Forward Voltage Drop | Reverse Leakage Current | Operating Temperature Range | Package | Key Differentiators |
|---|---|---|---|---|---|---|---|---|
| SE50N6x, SE80N6x, SE100N6x, SE120N6x | 5 A to 12 A | 200 V, 400 V, 600 V | 240 A to 320 A | 0.77 V to 0.84 V | < 0.1 μA (typical) | -55 °C to +175 °C | DFN6546A (6.5 mm x 4.6 mm footprint, 0.88 mm height) | Wettable flanks, AEC-Q101 qualified, 10% lower profile, 20% higher current, 82% higher surge vs. SMPC |
Key Features
- Industry's first standard rectifiers in the low-profile DFN6546A package with wettable flanks.
- Compact DFN6546A package with a 6.5 mm x 4.6 mm footprint and 0.88 mm typical height.
- Wettable flanks enable automatic optical inspection (AOI), eliminating the need for X-ray inspection.
- Higher current ratings up to 12 A and improved forward surge current capability up to 320 A.
- Advanced construction with higher copper content and larger chip sizes for enhanced thermal performance.
- Features an oxide planar chip junction design.
- Offers typical reverse leakage current less than 0.1 μA.
- Low forward voltage drops down to 0.77 V, contributing to improved efficiency.
- Wide operating temperature range from -55 °C to +175 °C.
- ESD capability compliant with IEC 61000-4-2, air discharge mode.
- Available in AEC-Q101-qualified versions.
- MSL moisture sensitivity level of 1, per J-STD-020, LF maximum peak of 260 °C.
- RoHS-compliant and halogen-free.
Applications
- Power line polarity protection
- Rail-to-rail protection
- Commercial applications
- Industrial applications
- Automotive applications
Availability
Vishay’s new surface-mount standard rectifiers in the DFN6546A package are available now in both samples and production quantities, with lead times of eight weeks. The new series includes the 5 A SE50N6x, 8 A SE80N6x, 10 A SE100N6x, and 12 A SE120N6x, with 200 V, 400 V, and 600 V reverse-voltage options and AEC-Q101-qualified versions.
