RECOM Expands RACM30-K Series with New High-Voltage Options for Medical, PoE+, & More

RECOM Adds High-Voltage Options to RACM30-K Series
RECOM Adds High-Voltage Options to RACM30-K Series

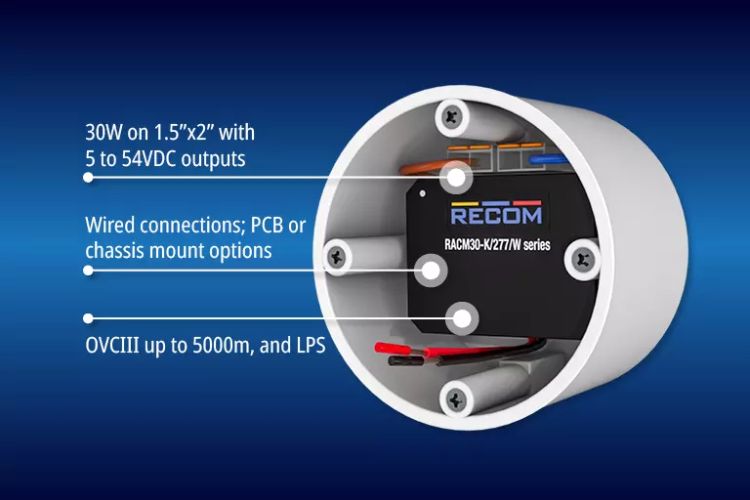

RECOM has expanded its RACM30-K/277/W series of 30W AC/DC power modules to now support output voltages up to 54VDC. These additions suit applications ranging from medical equipment and home healthcare to PoE+ networking systems. In addition to the existing 5V, 12V, 15V, 24V, +/-12V, and +/-15V options, the outputs now include 36V, 48V, and 54VDC, giving users more flexibility.

Specifically, the 54V models are well-suited for Power over Ethernet (PoE+) setups that require high isolation. All outputs above 24VDC retain medical BF (Body Floating) certification under UL 60601-1, meaning the tools built using these modules are safe to come in contact with people. The series features a wide AC input range of 88V to 305V, allowing for both open frame and fully enclosed mounting options. Standard pin-outs are available across wired, encapsulated PCB, and chassis-mount designs. Also, a DIN-rail mount version with push-in terminals is available for quick industrial applications. Additionally, a fully encapsulated IP65 version with a 59mm diameter and flying leads fits into flush-mount wall boxes.

The modules are compact, measuring just 1.5” x 2”. Despite that, they deliver the full 30W from -40°C to +60°C, and up to 90°C with derating. The models are rated for OVC III environments up to 5000 meters altitude and qualify as Limited Power Source (LPS). They meet EN 55022 Class B EMC standards with floating or grounded PELV outputs, so they work safely and quietly.

Key Features of the RACM30-K/277/W Series

  • 54VDC max output

  • 88V to 305VAC input range

  • UL 60601-1 BF certified (outputs >24VDC)

  • 1.5" x 2" compact size

  • 30W full power: -40°C to +60°C

  • Derates up to 90°C

  • Wired, PCB, chassis-mount options

  • DIN-rail with push-in terminals

  • IP65 sealed (59mm, flying leads)

  • OVC III rated to 5000m

  • LPS classified

  • EN 55022 Class B EMC

  • Medical, industrial, IT certified

Applications of RACM30-K/277/W Series

  • Building & Home Automation

  • Datacom & Telecom

  • Energy

  • Industrial & Automation

  • Infrastructure

  • Medical
