Power Integrations Unveils 4th Generation CAPZero™ X-Capacitor Discharge IC Family

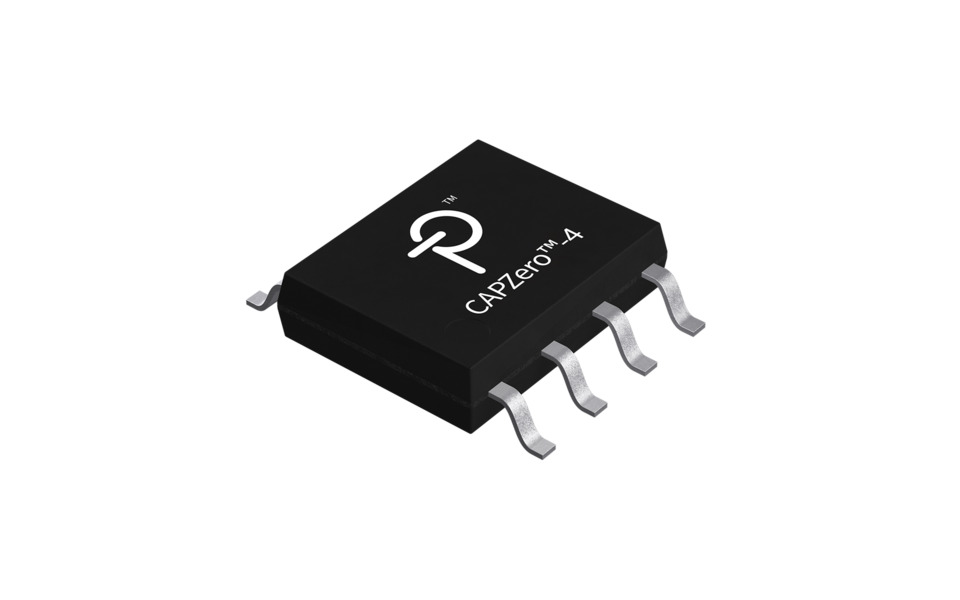

Power Integrations has expanded its CAPZero™ family of X-capacitor discharge ICs with the introduction of the fourth-generation CAPZero™-4 device, targeting industrial and consumer applications. The CAPZero family provides a crucial X-capacitor discharge function, which intelligently disengages the energy-consuming discharge resistor in an AC-DC power supply. This resistor is only activated when the device is unplugged, ensuring safe power bleed from the X-capacitor while minimizing energy waste during operation.
Designed for enhanced energy efficiency, the CAPZero-4 family significantly reduces system no-load and standby input power by up to 1000 mW. The device itself consumes less than 1 mW, enabling zero-watt no-load operation, and offers a robust operating temperature range from -40 °C to 125 °C, making it suitable for demanding outdoor industrial environments. It supports AC-DC converters with line-to-neutral input capacitance ranging from 100 nF to 6 μF.
This fourth-generation device offers pin-to-pin and package compatibility with previous CAPZero devices, specifically serving as a drop-in replacement for CAPZero-3. Migration to CAPZero-4 primarily involves selecting appropriate external resistor values to meet the required X-capacitor discharge time. Power Integrations has a strong track record with this technology, having shipped over one billion CAPZero ICs since its introduction in 2010.
Specifications
| Product | No-Load and Standby Input Power Reduction | Power Consumption | Operating Temperature | Supported Line-to-Neutral Input Capacitance |
|---|---|---|---|---|
| CAPZero-4 | Up to 1000 mW | Below 0.75 mW at 230 VAC | -40 °C to 125 °C | 100 nF to 6 μF |
Key Features
- Fourth-generation CAPZero™ X-capacitor discharge IC family.
- Reduces system no-load and standby input power by up to 1000 mW.
- Ultra-low power consumption below 0.75 mW at 230 VAC.
- Supports zero-watt no-load operation.
- Provides an operating temperature range from -40 °C to 125 °C.
- Supports industrial, outdoor, and other harsh-environment applications.
- Provides package and pin compatibility with CAPZero-3.
- Enables drop-in replacement of CAPZero-3 devices.
- Migration to CAPZero-4 requires selection of appropriate external resistor values to meet the necessary X-capacitor discharge time.
- Designs using CAPZero-4 meet IEC 60335, EN/IEC 62368-1 (NEMKO), UL 62368-1, and GB 4943.1 (CQC) standards.
- Supports AC-DC converters with line-to-neutral input capacitance between 100 nF and 6 μF.
Applications
- Appliance applications.
- Display applications.
- Adapter applications.
- Industrial applications.
- Appliances requiring ErP Lot 6 compliance.
- Adapters requiring ultralow no-load consumption of less than 300 mW.
- Demanding outdoor industrial applications.
- Other harsh-environment applications.
Availability
The CAPZero-4 is in production and shipping to customers. Power Integrations has introduced the fourth generation of its CAPZero™ X-capacitor discharge IC family for industrial and consumer applications, with the new device designed to support AC-DC converters with line-to-neutral input capacitance between 100 nF and 6 μF.
