Fanless 750W AC-DC Power Supplies Support Quiet, Reliable Operation in BF-rated Medical Equipment

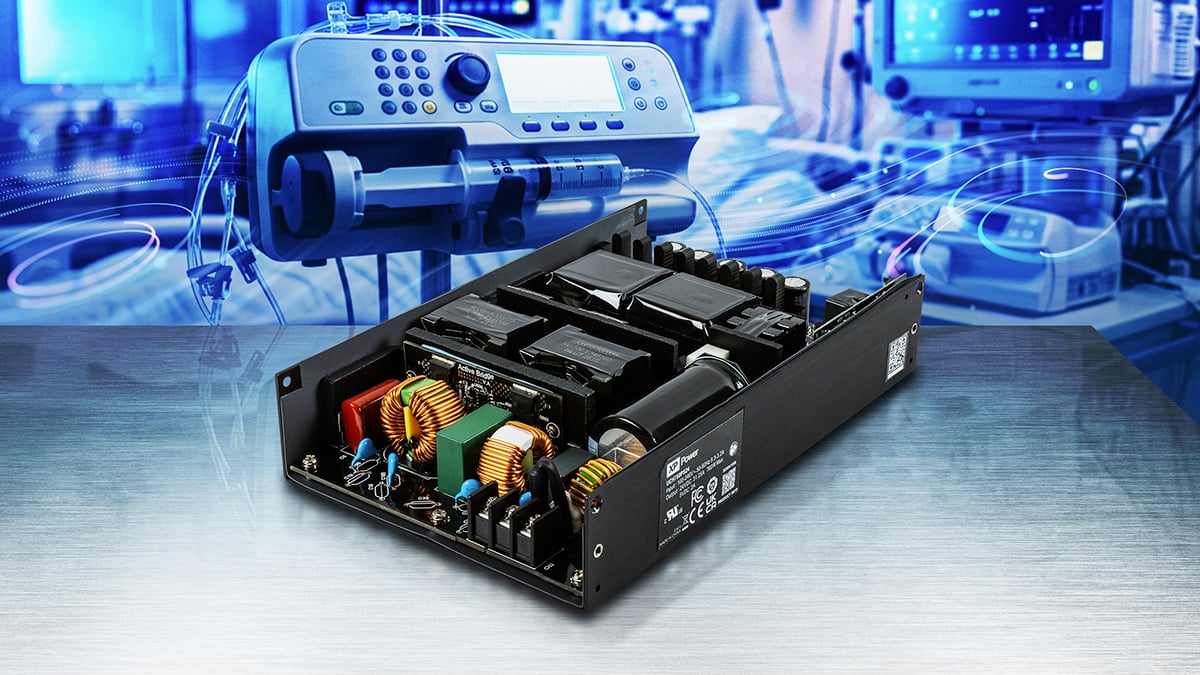

XP Power has introduced the UCH750 series, a line of 750W convection-cooled AC-DC power supplies. These compact, chassis-mount units are designed for noise-sensitive medical and industrial equipment, distinguishing themselves as one of the few fanless medical power supplies available at this power level.
The fanless design of the UCH750 series directly addresses the growing demand for quiet operation in critical environments such as medical imaging, patient monitoring, diagnostic instruments, and home healthcare devices. By eliminating the fan, the series not only removes a source of noise but also a common component prone to wear, thereby contributing to reduced maintenance requirements for equipment designers.
Furthermore, the UCH750 series is engineered to meet the stringent requirements of BF-rated medical equipment, which is increasingly prevalent in hospital settings. It provides 2 x MOPP isolation between input and output and maintains a maximum patient leakage current of 100µA, ensuring essential patient protection and low leakage current. Achieving up to 96% efficiency, the series also minimises conversion losses and internal heat generation.
Specifications
| Product | Power Output | Cooling | Efficiency | Dimensions (mm) | Input Voltage | Output Voltage Options | Emissions | Warranty |
|---|---|---|---|---|---|---|---|---|
| UCH750 series | 750W | Convection-cooled | Up to 96% | 203.2 x 127.0 x 40.0 | 90 to 264VAC | 12VDC, 24VDC, 36VDC, 48VDC, 54VDC | EN55032 Class B | 3-year |
Key Features
- 750W fanless, convection-cooled AC-DC power supplies.
- Compact, chassis-mount design measuring 203.2 x 127.0 x 40.0 mm.
- Achieves up to 96% efficiency, minimizing heat generation.
- Provides 2 x MOPP isolation and 100µA maximum patient leakage current.
- Certified to IEC60601-1 (CB report, UL, TÜV) for BF-rated medical equipment.
- Available in both Class I and Class II versions; Class II enhances safety for home healthcare.
- Features IEC62368-1 safety approvals for information technology and industrial applications.
- Meets EN55032 Class B limits for conducted and radiated emissions.
- Includes remote on/off control and a 5VDC/2A standby output.
- Integrated protection against overload, short circuit, overvoltage, and overtemperature.
- Offers five nominal output voltages: 12VDC, 24VDC, 36VDC, 48VDC, 54VDC.
Applications
- Medical imaging systems
- Patient monitoring and treatment equipment
- Diagnostic instruments
- Home healthcare devices, including dialysis machines
- Test and measurement systems
- Factory automation
- Telecommunications infrastructure
Avaliablity
The XP Power UCH750 Series of 750W fanless AC-DC power supplies is available to order directly from XP Power and through authorized distributors, including Avnet Abacus, DigiKey, element14, Farnell, Mouser, RS and TME. Available in multiple output voltage options ranging from 12V to 54V DC, the series offers a compact, convection-cooled design for medical and industrial applications.
