EIRE600 Power Series, 600W Single Output 5” x 3” x 1.1” AC-DC - Vox Power

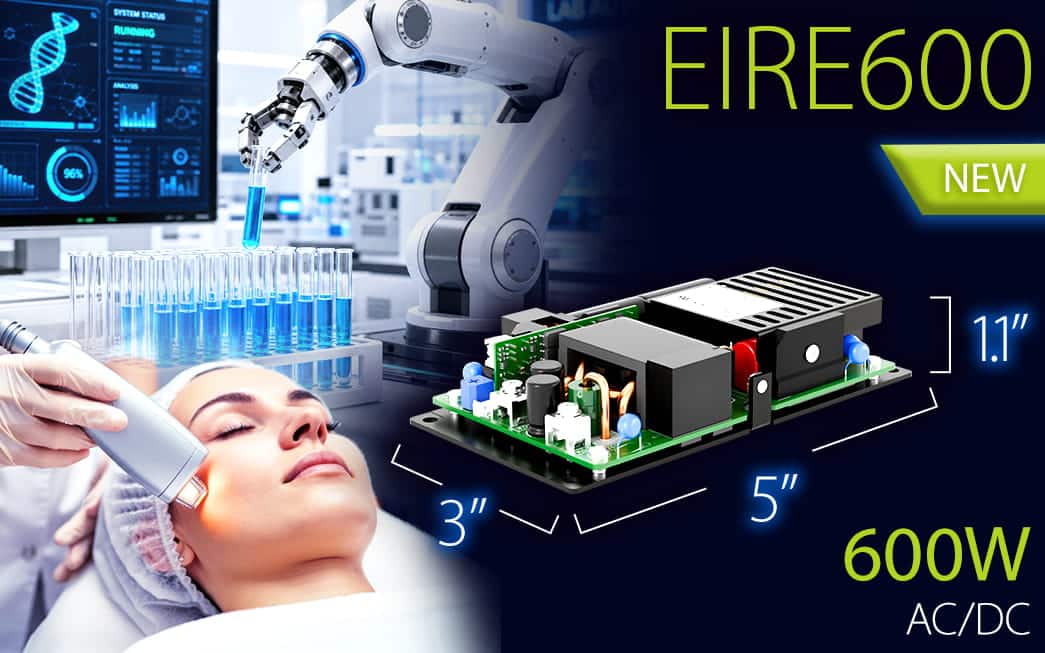

The EIRE600 series, developed by Vox Power, introduces a compact 600W open-frame AC-DC power supply. Measuring just 5 × 3 inches with an ultra-low 1.1-inch profile, this power module expands Vox Power's EIRE family of single-output AC/DC power supplies, offering a high-density solution for various applications.
A key differentiator of the EIRE600 is its versatile cooling capabilities. It delivers its full 600W output with either forced-air or conduction cooling, allowing for integration into diverse equipment designs. For fan-less operation, it can provide up to 450W using natural convection at 115 VAC, catering to applications where acoustic noise, maintenance, or ingress protection are critical. The unit also supports short-duration higher power requirements, offering up to 750W for three seconds.
With efficiency reaching up to 96%, the EIRE600 minimizes power losses and reduces the heat generated within the end system. Designed for both industrial and medical applications, it features 2 MOPP isolation, BF-rated output, and support for both Class I and Class II installations, ensuring robust safety and performance. Its compact size and power density exceeding 36.3W/in³ make it a significant component for high-power-density designs.
Source Link: Press Release
Specifications
| Product | Type | Max Power (Fan/Conduction Cooled) | Max Power (Convection Cooled) | Peak Power | Dimensions | Power Density | Efficiency | Input Voltage Range | Standard Output Voltages | Isolation | Safety Ratings | Operating Altitude | Max Ambient Temperature | Standby Power Consumption |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EIRE600 | Single Output AC-DC Power Supply (Open-Frame) | 600W | 450W (at 115VAC) | 750W (for 3 seconds) | 5” x 3” x 1.1” | Exceeding 36.3W/in³ | Up to 96% | 85–264VAC (Universal) | 12V, 24V, 36V, 48V | 2 MOPP | BF-rated output, Class I & II installations | Up to 5,000 m | +85°C (with derating) | Approx. 200mW |
Key Features
- Compact 5” x 3” footprint with an ultra-low 1.1” profile.
- Delivers 600W output with forced-air or conduction cooling.
- Provides 450W output with natural convection cooling (at 115VAC).
- Supports up to 750W for three seconds for peak power requirements.
- Achieves power density exceeding 36.3W/in³.
- High efficiency of up to 96% minimizes power losses.
- Universal input voltage range of 85–264VAC.
- Features 2 MOPP isolation and BF-rated output for medical applications.
- Supports both Class I and Class II installations.
- Operates at altitudes up to 5,000 m and ambient temperatures up to +85°C (with derating).
- Offers standard output voltages of 12V, 24V, 36V, and 48V.
- Includes a 5V/2A bias supply and a 12V auxiliary fan output.
- Provides remote sense, AC_OK, and inhibit functions for system control.
- Achieves approximately 200mW standby power consumption.
- Class B conducted and radiated emissions performance simplifies integration.
Applications
- Industrial equipment requiring compact, high-power AC-DC conversion.
- Medical devices, including laboratory and diagnostic equipment.
- Systems where high power density in a confined space is critical.
- Applications benefiting from flexible cooling options, including forced-air, conduction, or natural convection.
- Environments sensitive to acoustic noise or requiring fan-less operation for maintenance or ingress protection.
Availability
The VOX Power EIRE600 Series is a compact, high-power-density 600W single-output AC-DC power supply designed to meet the requirements of industrial and other space-constrained applications. Featuring a compact 5 × 3 × 1.1-inch form factor, the EIRE600 series offers a solution for equipment manufacturers seeking reliable, high-performance power conversion in a space-saving design. Customers and OEMs interested in product availability, ordering options, technical specifications, and application suitability can learn more through the official VOX Power website.
