Vishay Intertechnology Releases New D2TO35S Top-Side Cooling Mount Power Resistor

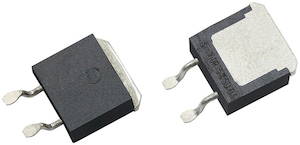

VISHAY Intertechnology has introduced the D2TO35S, an automotive-grade top-side cooling mount thick-film power resistor. Housed in a compact TO-263 (D2PAK) surface-mount package, this new component is specifically designed for automotive applications, aiming to improve thermal performance and reduce board space requirements. It delivers a high power dissipation of 35 W at 25 °C, addressing the increasing challenge of thermal constraints in system design.
A key differentiator of the D2TO35S is its top-side cooling architecture, which facilitates direct heat transfer to a heatsink. This design enables significantly greater power dissipation, up to nine times more than standard PCB-mounted devices when paired with an appropriate heatsink. Its compact, surface-mount design offers flexibility for designers to either increase power dissipation within an existing footprint or achieve the same functionality in a smaller footprint, contributing to lower PCB temperatures, reduced thermal stress on adjacent components, and improved overall system reliability. Furthermore, the D2TO35S features a non-inductive design, which enhances signal integrity and power handling during fast transient conditions.
Source Link: Press Release
Specifications
| Product | Function | Power Dissipation | Package | Resistance Range | Tolerance | Thermal Resistance | TCR | Operating Temperature Range | Safety Rating | Solder Reflow Security |
|---|---|---|---|---|---|---|---|---|---|---|
| D2TO35S | Thick Film Power Resistor | 35 W at 25 °C | TO-263 (D2PAK) | 4.7 Ω to 550 kΩ | ± 1 % | 4.28 °C/W | ± 150 ppm/°C | -55 °C to +175 °C | RoHS-compliant | 270 °C/10 s |
Key Features
- Automotive-grade component
- Top-side cooling mount design
- Thick film power resistor technology
- Compact TO-263 (D2PAK) surface-mount package
- High power dissipation of 35 W at 25 °C
- Enables up to nine times greater power dissipation than standard PCB-mounted devices (with appropriate heatsink)
- Non-inductive design for improved signal integrity and power handling
- Resistance range from 4.7 Ω to 550 kΩ
- Tolerances down to ± 1 %
- Thermal resistance of 4.28 °C/W
- TCR down to ± 150 ppm/°C
- Wide operating temperature range from -55 °C to +175 °C
- RoHS-compliant
- Solder reflow secure at 270 °C/10 s
Applications
- Automotive applications
- Designs where thermal constraints are a primary system design limitation
- Systems requiring increased power dissipation within the same footprint
- Systems requiring the same functionality in a smaller footprint
- Designs benefiting from lower PCB temperatures
- Designs benefiting from reduced thermal stress on neighbouring components
- Applications needing improved overall system reliability
- Designs requiring improved signal integrity and power handling in fast transient conditions
Availability
Vishay Intertechnology’s new D2TO35S Automotive Grade thick-film power resistor is now available for sampling and production orders, with a lead time of approximately 14 weeks. Featuring a 35 W power rating at 25°C top-side temperature, a compact TO-263 (D²PAK) surface-mount package, and enhanced thermal performance, the device is designed to optimize space and heat dissipation in automotive and other demanding applications.
