Vishay Intertechnology’s CHEP High Frequency and High Power Thin Film Chip Resistors

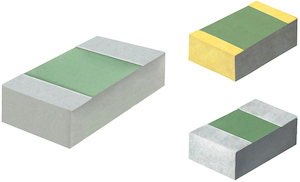

Vishay Intertechnology, Inc. has introduced the new CHEP series, a line of thin-film chip resistors available in compact 0402 and 0603 case sizes. These resistors are built on an advanced aluminium nitride (AlN) substrate, designed to deliver exceptional power handling and high-frequency performance within standard surface-mount footprints. This innovation allows designers to achieve higher power density without increasing board space or compromising RF performance, eliminating the need for a heatsink in many applications.
The CHEP series sets a new standard for power handling in its class, significantly outperforming competing solutions often rated below 1 W. The devices offer standard power ratings of 1.2 W in the 0402 case size and 1.8 W in the 0603 case size. When mounted according to datasheet guidelines, these ratings can increase by 50 % to 1.8 W and 2.8 W, respectively, enabling greater power density in smaller form factors.
A key differentiator of the CHEP series is its ability to operate across a wide frequency range while minimizing internal reactance. With LC values as low as 1 x 10⁻²⁴, these resistors exhibit low parasitics, which helps reduce phase shift, maintain consistent impedance, and minimize noise, thereby improving overall RF performance. Their compatibility with widely accepted land patterns simplifies design and layout, making them a versatile component for various high-frequency and high-power applications.
Specifications
| Product | Function | Case Sizes | Standard Power Rating | Enhanced Power Rating (per datasheet) | Frequency Range | Resistance Range | Tolerance | Temperature Coefficient | Operating Temperature Range | Substrate | Terminal Options |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CHEP series | Thin Film Chip Resistor | 0402, 0603 | 1.2 W (0402), 1.8 W (0603) | 1.8 W (0402), 2.8 W (0603) | Up to 50 GHz | 20 Ω to 120 Ω | ± 1 % | ± 100 ppm/°C (± 50 ppm/°C available) | -55 °C to +155 °C | Aluminum Nitride (AlN) | Flip-chip, Wraparound |
Key Features
- Compact 0402 and 0603 case sizes for high power density in small footprints.
- Built on an advanced aluminium nitride (AlN) substrate for superior thermal performance.
- Standard power ratings of 1.2 W (0402) and 1.8 W (0603).
- Enhanced power ratings up to 1.8 W (0402) and 2.8 W (0603) when mounted per datasheet guidelines.
- High-frequency performance: up to 50 GHz (0402 flip-chip), 20 GHz (0402 wraparound), and 40 GHz (0603).
- Available with flip-chip or wraparound terminals.
- Minimises internal reactance with LC values as low as 1 x 10⁻²⁴.
- Low parasitics reduce phase shift, maintain consistent impedance, and minimise noise for improved RF performance.
- Resistance ranges from 20 Ω to 120 Ω with tolerances down to ± 1 %.
- Temperature coefficient of ± 100 ppm/°C (± 50 ppm/°C available upon request).
- Operates over a wide temperature range from -55 °C to +155 °C.
- RoHS-compliant, halogen-free, and Vishay Green.
Applications
- Telecom and connectivity applications
- LEO satellites
- Base station terminals
- 5G and 6G networks
- RF infrastructure, including remote radio units (RRUs) and antennas
- Aerospace and defence systems such as drones
- Satellite payloads, guidance and telemetry systems
- Data links and phased array radar systems
Availability
Samples and production quantities of the Vishay Sfernice CHEP High Frequency and High Power Thin Film Chip Resistors are available now, with a standard lead time of 16 weeks. The CHEP series is offered in compact 0402 and 0603 case sizes, with flip-chip or wraparound terminals and operating frequencies up to 50 GHz.
