Automotive Grade Optical Sensors With Photodiode Output

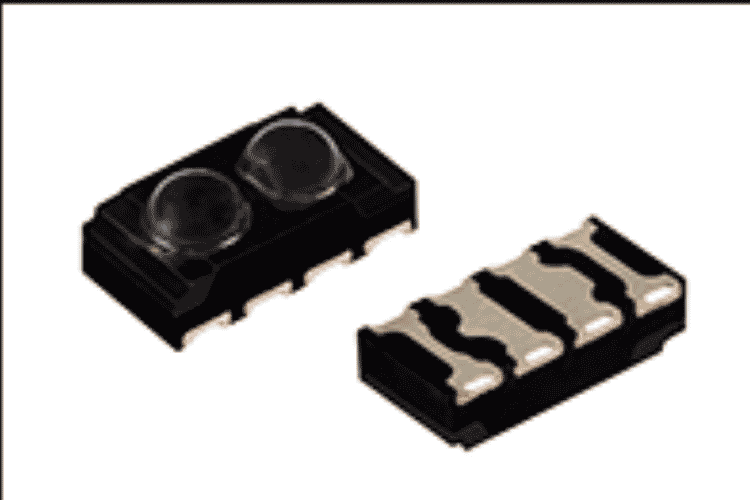

The Optoelectronics group of Vishay Intertechnology, Inc. (Vishay Semiconductors) has introduced four new Automotive Grade optical sensors: the VCND2040X02, VCND2040SLX02, VCND2045X02, and VCND2045SLX02. These devices are designed to address increasing challenges in modern battery management, energy storage, and industrial automation systems by providing reliable, flexible, and wear-free optical data communication.
These innovative sensors combine an infrared (IR) emitter and a PIN photodiode within miniature 4.4 mm x 2.25 mm x 1.9 mm surface-mount packages. They enable high-speed optical communication with data transmission rates up to 6 Mbit/s between system nodes, offering a robust alternative to traditional wireless RF technologies.
A key differentiator for these Vishay Semiconductors products is their AEC-Q102 qualification, making them suitable for demanding automotive and industrial environments. Unlike RF solutions, these optical communication links are inherently immune to EMC and EMI / RFI interference and offer enhanced resilience against cyberattacks. This combination of features helps designers improve overall system reliability, safety, and performance in critical applications.
Source Link: Press Release
Specifications
| Product Series | Function | Package | Data Rate | Emitter Type | Rise/Fall Time | Qualification | Mounting Flexibility | Compliance |
|---|---|---|---|---|---|---|---|---|
| VCND2040X02, VCND2040SLX02, VCND2045X02, VCND2045SLX02 | Automotive Grade Optical Sensor with Photodiode Output | Miniature 4.4 mm x 2.25 mm x 1.9 mm surface-mount | Up to 6 Mbit/s | Single-stack (VCND2040 series) or Double-stack (VCND2045 series) IR emitter | 18 ns (VCND2040 series) or 9 ns (VCND2045 series) | AEC-Q102 | Side-view or Top-view (wettable flank lead frame) | RoHS compliant, halogen-free, Vishay Green, MSL 3 |
Key Features
- Automotive Grade, AEC-Q102 qualified for demanding environments.
- Combines an infrared (IR) emitter and PIN photodiode in a single package.
- Miniature 4.4 mm x 2.25 mm x 1.9 mm surface-mount packages.
- Enables high-speed optical data communication up to 6 Mbit/s.
- Provides wear-free optical communication links.
- Immune to EMC and EMI / RFI interference.
- Offers enhanced resilience to cyberattacks.
- Features fast response times: 18 ns for VCND2040 series and 9 ns for VCND2045 series.
- Supports simultaneous bi-directional data transfer for efficient data links.
- Incorporates two independent lenses and an integrated crosstalk barrier to minimize optical interference.
- Supports free-to-air optical communication over short ranges, extendable with external secondary optics (e.g., optical fibre).
- Wettable flank lead frame design allows for flexible side-view or top-view mounting.
- RoHS compliant, halogen-free, Vishay Green, and Moisture Sensitivity Level (MSL) of 3.
Applications
- Decentralised communication between battery cells and system nodes in battery management applications.
- Cell monitoring and balancing to improve overall system efficiency.
- Energy storage systems.
- Industrial automation.
- Optical switching.
- Optical encoders.
- Position sensors.
Availability
Vishay Intertechnology has announced the availability of four new automotive-grade optical sensors designed for high-speed, wear-free optical communication in battery management systems, energy storage, and industrial automation applications. The VCND2040X02 and VCND2040SLX02 feature a single-stack infrared emitter with typical rise and fall times of 18 ns, while the VCND2045X02 and VCND2045SLX02 incorporate a double-stack emitter with faster 9 ns rise and fall times. All four devices combine an infrared emitter and PIN photodiode in compact 4.4 mm × 2.25 mm × 1.9 mm surface-mount packages, support data transmission rates of up to 6 Mbit/s, and are AEC-Q102 qualified.
